Spring Batch in Spring MVC
Today I have implemented Spring Batch in my Spring MVC project for importing data from CSV file to database. There are plenty of tutorials on the internet but I met a lot of problems during the implementation, which were not mentioned in those tutorials. I will list here all the problems.
Exceptions
Problem 1
You can not use your custom autowired service inside ItemProcessor.
Solution
Try to use your SpringContextUtils.getBean
1 2 3 4 5 6 7 8 9 10 |
public class SkuDataProcessor implements ItemProcessor<CustomSku, ProductSku> { private static Logger logger = Logger.getLogger( SkuDataProcessor.class ); @Override public ProductSku process( final CustomSku inSku ) throws Exception { SkuImportService skuImportService = (SkuImportService) SpringContextUtils.getBean( "skuImportService" ); skuImportService.importSkuFromCSV( inSku ); |
1 2 3 4 5 6 7 8 9 10 |
@Service("skuImportService") public class SkuImportServiceImpl implements SkuImportService { private static Logger logger = Logger.getLogger( SkuImportServiceImpl.class ); @Autowired private BrandService brandService; ...... |
Problem 2
I have added all the data checking and importing in ItemProcessor, so I do not need to insert new record into the database(just do nothing here), so I tried to set a readable SQL in ItemWriter like this:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 |
@Bean public ItemWriter<ProductSku> csvSkuWriter() { JdbcBatchItemWriter<ProductSku> writer = new JdbcBatchItemWriter<ProductSku>(); writer.setItemSqlParameterSourceProvider( new BeanPropertyItemSqlParameterSourceProvider<ProductSku>() ); writer.setSql( "select :id" ); writer.setDataSource( dataSource ); writer.afterPropertiesSet(); return writer; } @Bean public Step stepImport() { return stepBuilderFactory.get( "stepImport" ) .<CustomSku, ProductSku>chunk( 50 ) .reader( csvSkuReader() ) .processor( skuDataProcessor() ) .writer( csvSkuWriter() ) .build(); } |
Exception:
1 2 3 4 |
org.springframework.dao.DataIntegrityViolationException: PreparedStatementCallback; SQL [select ?Can not issue executeUpdate() for SELECTs; nested exception is java.sql.BatchUpdateException: Can not issue executeUpdate() for SELECTs |
Solution:
Create a new class implement ItemWriter:
1 2 3 4 5 6 7 8 9 10 11 12 13 |
import java.util.List; import net.mobabel.nova.model.shop.ProductSku; import org.springframework.batch.item.ItemWriter; public class NoOpItemWriter implements ItemWriter<ProductSku> { public void write( List<? extends ProductSku> items ) throws Exception { //do nothing } } |
Then:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 |
@Bean public NoOpItemWriter noOpWriter() { return new NoOpItemWriter(); } @Bean public Step stepImport() { return stepBuilderFactory.get( "stepImport" ) .<CustomSku, ProductSku>chunk( 50 ) .reader( csvSkuReader() ) .processor( skuDataProcessor() ) .writer( noOpWriter() ) .build(); } |
Problem 3
1 2 3 |
javax.validation.ValidationException: HV000183: Unable to initialize 'javax.el.ExpressionFactory'. Check that you have the EL dependencies on the classpath, or use ParameterMessageInterpolator instead |
I have imported spring-batch-core in maven, but this is not enough, you need the following two libraries.
1 2 3 4 5 6 7 8 9 10 11 12 |
<dependency> <groupId>org.springframework.batch</groupId> <artifactId>spring-batch-core</artifactId> </dependency> <dependency> <groupId>javax.el</groupId> <artifactId>javax.el-api</artifactId> </dependency> <dependency> <groupId>org.glassfish.web</groupId> <artifactId>javax.el</artifactId> </dependency> |
Problem 4
1 2 3 4 |
org.springframework.jdbc.BadSqlGrammarException: PreparedStatementCallback; bad SQL grammar [SELECT JOB_INSTANCE_ID, JOB_NAME from BATCH_JOB_INSTANCE where JOB_NAME = ? and JOB_KEY = ?]; nested exception is com.mysql.jdbc.exceptions.jdbc4.MySQLSyntaxErrorException: Table 'nova_classic_local_core.batch_job_instance' doesn't exist |
Reason:
Spring Batch requires some tables in your database for job execution. But in Spring MVC those tables can not be generated automatically. In Spring Boot yes, if you enable spring.batch.initialize-schema=ALWAYS in your application.properties.

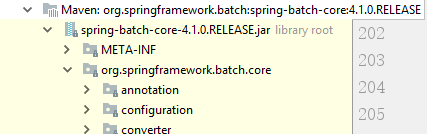

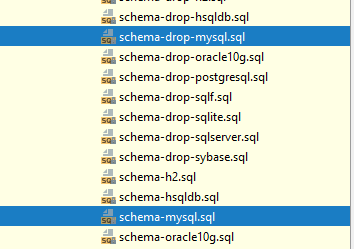

The meta table’s scripts are stored in the spring-batch-core.jar, you need to create it manually.
I have tried this solution from https://www.mkyong.com/spring-batch/spring-batch-metadata-tables-are-not-created-automatically/ to create tables automatically but does not work.
This is my spring-batch.xml
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 |
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:jdbc="http://www.springframework.org/schema/jdbc" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd"> <bean id="jobRepository" class="org.springframework.batch.core.repository.support.JobRepositoryFactoryBean" depends-on="dataSource"> <property name="dataSource" ref="dataSource" /> <property name="transactionManager" ref="transactionManager" /> <property name="databaseType" value="mysql" /> </bean> <bean id="jobLauncher" class="org.springframework.batch.core.launch.support.SimpleJobLauncher"> <property name="jobRepository" ref="jobRepository" /> </bean> <jdbc:initialize-database data-source="dataSource"> <jdbc:script location="org/springframework/batch/core/schema-drop-mysql.sql" /> <jdbc:script location="org/springframework/batch/core/schema-mysql.sql" /> </jdbc:initialize-database> </beans> |
Finally, I create the tables manually. Of course, you can implement this via flyway
Problem 5
When the job was executed successfully without any exceptions, and you run it again.
Reason:
You will get the “All steps already completed or no steps configured for this job.” message in table batch_job_execution and job quit with exit code NOOP, it might be that you are running the same job with exactly the same parameters.
Please add a timestamp in jobParameters to avoid this problem.
1 2 3 4 5 6 7 8 9 |
JobParameters jobParameters = new JobParametersBuilder() .addLong( "timestamp", System.currentTimeMillis() ) .toJobParameters(); JobExecution result = null; try { result = jobLauncher.run( skuToDatabaseJob, jobParameters ); } ...... |
1 2 |
ExitStatus es = result.getExitStatus(); if (es.getExitCode().equals( ExitStatus.COMPLETED.getExitCode() )){......} |
Code:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 |
/* * Copyright (c) 2016-2017 Mobabel.net * * All rights reserved. */ package net.mobabel.nova.service.shop.custom.batch; import com.alibaba.druid.pool.DruidDataSource; import net.mobabel.nova.core.util.Logger; import net.mobabel.nova.model.shop.ProductSku; import org.springframework.batch.core.ExitStatus; import org.springframework.batch.core.Job; import org.springframework.batch.core.JobExecution; import org.springframework.batch.core.JobParameters; import org.springframework.batch.core.JobParametersBuilder; import org.springframework.batch.core.JobParametersInvalidException; import org.springframework.batch.core.Step; import org.springframework.batch.core.configuration.annotation.EnableBatchProcessing; import org.springframework.batch.core.configuration.annotation.JobBuilderFactory; import org.springframework.batch.core.configuration.annotation.StepBuilderFactory; import org.springframework.batch.core.launch.JobLauncher; import org.springframework.batch.core.launch.support.RunIdIncrementer; import org.springframework.batch.core.launch.support.SimpleJobLauncher; import org.springframework.batch.core.repository.JobExecutionAlreadyRunningException; import org.springframework.batch.core.repository.JobInstanceAlreadyCompleteException; import org.springframework.batch.core.repository.JobRepository; import org.springframework.batch.core.repository.JobRestartException; import org.springframework.batch.core.repository.support.JobRepositoryFactoryBean; import org.springframework.batch.item.ItemProcessor; import org.springframework.batch.item.ItemWriter; import org.springframework.batch.item.database.BeanPropertyItemSqlParameterSourceProvider; import org.springframework.batch.item.database.JdbcBatchItemWriter; import org.springframework.batch.item.file.FlatFileItemReader; import org.springframework.batch.item.file.mapping.BeanWrapperFieldSetMapper; import org.springframework.batch.item.file.mapping.DefaultLineMapper; import org.springframework.batch.item.file.transform.DelimitedLineTokenizer; import org.springframework.batch.support.DatabaseType; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.beans.factory.annotation.Value; import org.springframework.context.annotation.Bean; import org.springframework.core.io.FileSystemResource; import org.springframework.stereotype.Component; import org.springframework.transaction.PlatformTransactionManager; @Component @EnableBatchProcessing public class SpringBatchProcessingImpl implements SpringBatchProcessing { private static Logger logger = Logger.getLogger( SpringBatchProcessingImpl.class ); @Value( "${ecommerce.config.csv_file}" ) private String fetchFile; @Autowired public JobBuilderFactory jobBuilderFactory; @Autowired public StepBuilderFactory stepBuilderFactory; @Autowired public DruidDataSource dataSource; @Autowired private JobLauncher jobLauncher; @Autowired private Job skuToDatabaseJob; @Bean public JobRepository jobRepository( DruidDataSource dataSource, PlatformTransactionManager transactionManager ) throws Exception { JobRepositoryFactoryBean jobRepositoryFactoryBean = new JobRepositoryFactoryBean(); jobRepositoryFactoryBean.setDataSource( dataSource ); jobRepositoryFactoryBean.setTransactionManager( transactionManager ); jobRepositoryFactoryBean.setDatabaseType( String.valueOf( DatabaseType.MYSQL ) ); jobRepositoryFactoryBean.setIsolationLevelForCreate( "ISOLATION_SERIALIZABLE" ); //for oracle //jobRepositoryFactoryBean.setIsolationLevelForCreate("ISOLATION_READ_COMMITTED"); jobRepositoryFactoryBean.afterPropertiesSet(); return jobRepositoryFactoryBean.getObject(); } @Bean public SimpleJobLauncher jobLauncher( DruidDataSource dataSource, PlatformTransactionManager transactionManager ) throws Exception { SimpleJobLauncher jobLauncher = new SimpleJobLauncher(); jobLauncher.setJobRepository( jobRepository( dataSource, transactionManager ) ); return jobLauncher; } @Bean public FlatFileItemReader<CustomSku> csvSkuReader() { FlatFileItemReader<CustomSku> reader = new FlatFileItemReader<CustomSku>(); reader.setResource( new FileSystemResource( fetchFile ) ); reader.setLinesToSkip( 1 ); reader.setLineMapper( new DefaultLineMapper<CustomSku>() {{ setLineTokenizer( new DelimitedLineTokenizer() {{ setNames( new String[] { "refFromStore", "size", "color", "stock", "BrandName", "styleCode", "officePrice", "name", "skuFromStore", "weight" } ); setDelimiter( ";" ); }} ); setFieldSetMapper( new BeanWrapperFieldSetMapper<CustomSku>() {{ setTargetType( CustomSku.class ); }} ); }} ); return reader; } @Bean ItemProcessor<CustomSku, ProductSku> skuDataProcessor() { SkuDataProcessor skuDataProcessor = new SkuDataProcessor(); return skuDataProcessor; } @Bean public ItemWriter<ProductSku> csvSkuWriter() { JdbcBatchItemWriter<ProductSku> writer = new JdbcBatchItemWriter<ProductSku>(); writer.setItemSqlParameterSourceProvider( new BeanPropertyItemSqlParameterSourceProvider<ProductSku>() ); writer.setSql( "INSERT INTO sh_product_sku (id) VALUES (:id)" ); writer.setDataSource( dataSource ); writer.afterPropertiesSet(); return writer; } @Bean public NoOpItemWriter noOpWriter() { return new NoOpItemWriter(); } // end reader, writer, and processor // begin job info @Bean public Step stepImport() { return stepBuilderFactory.get( "stepImport" ) //Must be 1, otherwise every new item will repeat adding duplicated item, because in the check list, //the duplication checking will be executed in every chunksize frequency .<CustomSku, ProductSku>chunk( 1 ) .reader( csvSkuReader() ) .processor( skuDataProcessor() ) .writer( noOpWriter() ) .build(); } @Bean Job skuToDatabaseJob( SkuJobListener listener ) { return jobBuilderFactory.get( "skuToDatabaseJob" ) .incrementer( new RunIdIncrementer() ) .listener( listener ) .flow( stepImport() ) .end() .build(); } // end job info @Override public void run() throws Exception { JobParameters jobParameters = new JobParametersBuilder() .addLong( "timestamp", System.currentTimeMillis() ) .toJobParameters(); JobExecution result = null; try { result = jobLauncher.run( skuToDatabaseJob, jobParameters ); } catch (JobExecutionAlreadyRunningException e) { logger.error( "", e ); } catch (JobRestartException e) { logger.error( "", e ); } catch (JobInstanceAlreadyCompleteException e) { logger.error( "", e ); } catch (JobParametersInvalidException e) { logger.error( "", e ); } ExitStatus es = result.getExitStatus(); if (es.getExitCode().equals( ExitStatus.COMPLETED.getExitCode() )) { logger.info( "sku database refresh job finished" ); } else if (es.getExitCode().equals( ExitStatus.NOOP.getExitCode() )) { logger.warn( "sku database refresh job noop" ); } else { logger.error( "sku database refresh job failed" ); } } } |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 |
/* * Copyright (c) 2016-2018 Mobabel.net * * All rights reserved. */ package net.mobabel.nova.service.shop.custom.batch; import net.mobabel.nova.core.util.Logger; import net.mobabel.nova.model.shop.ProductSku; import net.mobabel.nova.service.shop.custom.SkuImportService; import net.mobabel.nova.service.utils.SpringContextUtils; import org.springframework.batch.item.ItemProcessor; public class SkuDataProcessor implements ItemProcessor<CustomSku, ProductSku> { private static Logger logger = Logger.getLogger( SkuDataProcessor.class ); @Override public ProductSku process( final CustomSku inSku ) throws Exception { //This is your custom service to check and import records into database SkuImportService skuImportService = (SkuImportService) SpringContextUtils.getBean( "skuImportService" ); skuImportService.importSkuFromCSV( inSku ); //do nothing here final ProductSku outSku = new ProductSku(); outSku.setName( inSku.getName() ); logger.info( "Sku converting (" + inSku + ") into (" + outSku + ")" ); return outSku; } } |
Ref: NOST-95
